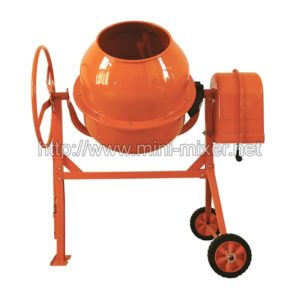

HCMS-160/180/200L Concrete Mixer
Features/
1. mortar mixer Easy to maintain and operate
2.Strong and very stable chassis easy to clean(Chassis use 3mm steel sheet)
3.High quality and standard bearings are used to transmit power for drum rotation,reduce power loss and increase reliability
4.Mixing drum is made of 3mm thick steel sheet.Or customization by more thick steel sheet.
5.Extra handle to fit compact vehicle tail.
6.Lockable engine compartment.
7.Ergonomic and safe tipping system,with large hand wheel and manual lock system.
8.Diesel engine,Petrol engine or Electric motor as options.
| MODEL | HCM550S | HCM650S | HCM700S |
|---|---|---|---|
| DRUM CAPACITY | 160L | 180L | 200L |
| POWER | 650W | 700W | 800W |
| DRUM DIAMETER | 630mm | 630mm | 630mm |
| DRUM MOUTH | 390mm | 390mm | 390mm |
| DRUM HEIGHT | 630mm | 680mm | 720mm |
| DRUM THICKNESS | 1.1mm/1.6mm | 1.1mm/1.6mm | 1.2mm/1.75mm |
| COGWHEEL TYPE | cast iron | cast iron | cast iron |
| TIPPING TYPE(HAND WHEEL OR PEDAL) | 10¡ã | 10¡ã | 10¡ã |
| OVERALL DIMENTION | 1200¡Á710¡Á1370mm | 1260¡Á850¡Á1400mm | 1260¡Á850¡Á1420mm |
| N.W | 72Kg | 74Kg | 76Kg |
| G.W | 76Kg | 78Kg | 80Kg |
| 20GP | 84PCS | 84PCS | 84PCS |
| 40GP | 180PCS | 180PCS | 180PCS |
| 40HC | 225PCS | 225PCS | 225PCS |
