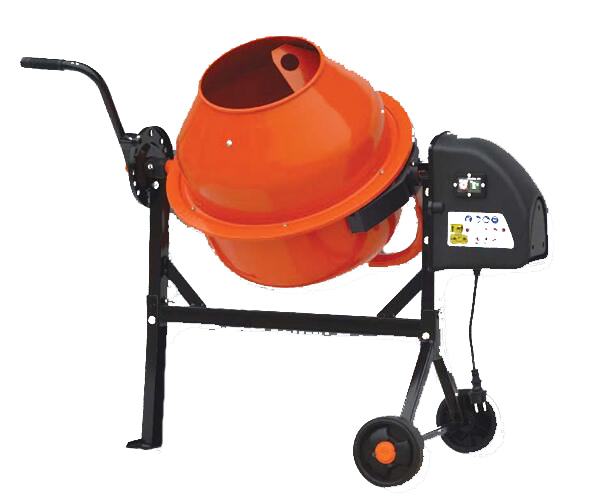

HCM-46/63/80L Concrete Mixer
A good choice for small work-site Especially for DIY use
Product Features
-
In accordance with European GS, CE, ROHS standards.
-
Small volume and easy to carry.
-
Bare motor and double insulation protection.
-
Tipping bar
-
Ip45 protection class.
-
Punched ring gear.
Concrete Mixer 46L —-80L
| Model | HCM160 | HCM225 | HCM280 |
|---|---|---|---|
| DRUM CAPACITY | 46 Liters | 63 Liters | 80 Liters |
| POWER | 150 W | 220 W | 250 W |
| DRUM DIAMETER | 420 mm | 460 mm | 460 mm |
| DRUM MOUTH | 230 mm | 240 mm | 250 mm |
| DRUM HEIGHT | 406 mm | 465 mm | 535 mm |
| DRUM THICKNESS | 0.8 mm/1.5 mm | 0.8 mm/1.5 mm | 0.8 mm/1.5 mm |
| COGWHEEL TYPE | punching | punching | punching |
| OVERALL DIMENTION | 1070 x 510 x 885 mm | 1110 x 550 x 935 mm | 1110 x 550 x 965 mm |
| N.W. | 22 kg | 24 kg | 26 kg |
Specification:
◆ Convenient moving, small size, can be taken by car.
◆ Protection level: IP 44.
◆ Working pattern: S6 30%.
◆ Compliant voltage/frequency: 100V—240V/50 or 60Hz.
◆ Protection mode of motor running: Thermal protection 130℃.
◆ Motor safety standard: II type of electrical equipment.
