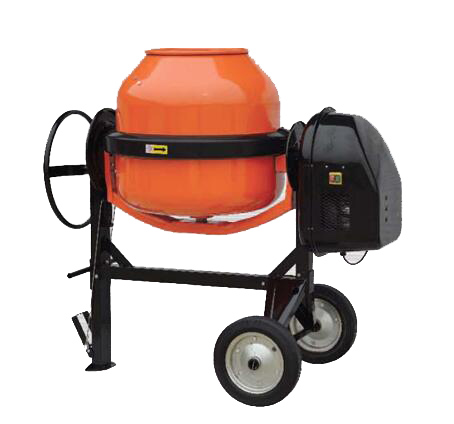

HCM-280/300/320L Concrete mixer

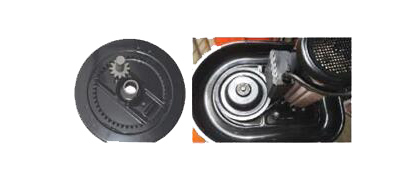

Protective cover for ring gear ensures the drum more durable

• In accordance with European Gs, CE, standards.

• Electrical standards: ROSH European Class I.

• Heavy-duty cast iron ring gear.

• Pedal tipping wheel.

• Excellent performance on mixing capacity.

• Ip55 protection class.



Specification:

◆  Suitable for construction site—-maintaining building and so on.

◆  With structure for speed reduction of unloading, making the unloading much easier

◆  Fixed with thick material, bringing high impact resistance to the surface

◆  Protection level: IP 44

◆  Working pattern: S6   30%

◆  Compliant voltage/frequency: 100V—240V/50 or 60Hz

◆  Protection mode of motor running: thermal protection 130 ℃

◆  Motor safety standard: I type of electrical equipment

MODEL	HCM815	HCM920	HCM1060
DRUM CAPACITY	280Liters	300Liters	320Liters
POWER(GASOLINE)	1400W	1800W	2200W
DRUM DIAMETER	742 mm	742 mm	742 mm
DRUM MOUTH	430 mm	430 mm	430 mm
DRUM HEIGHT	688 mm	728 mm	810 mm
DRUM THICKNESS	1.8 mm/2.1 mm	1.8 mm/2.1 mm	1.8 mm/2.1 mm
COGWHEEL TYPE	cast iron	cast iron	cast iron
OVERALL DIMENTION	1580x830x1470mm	1580x830x1470mm	1580x830x1470mm
N.W.	133 KG	135 KG	138 KG
